ETA June 2026

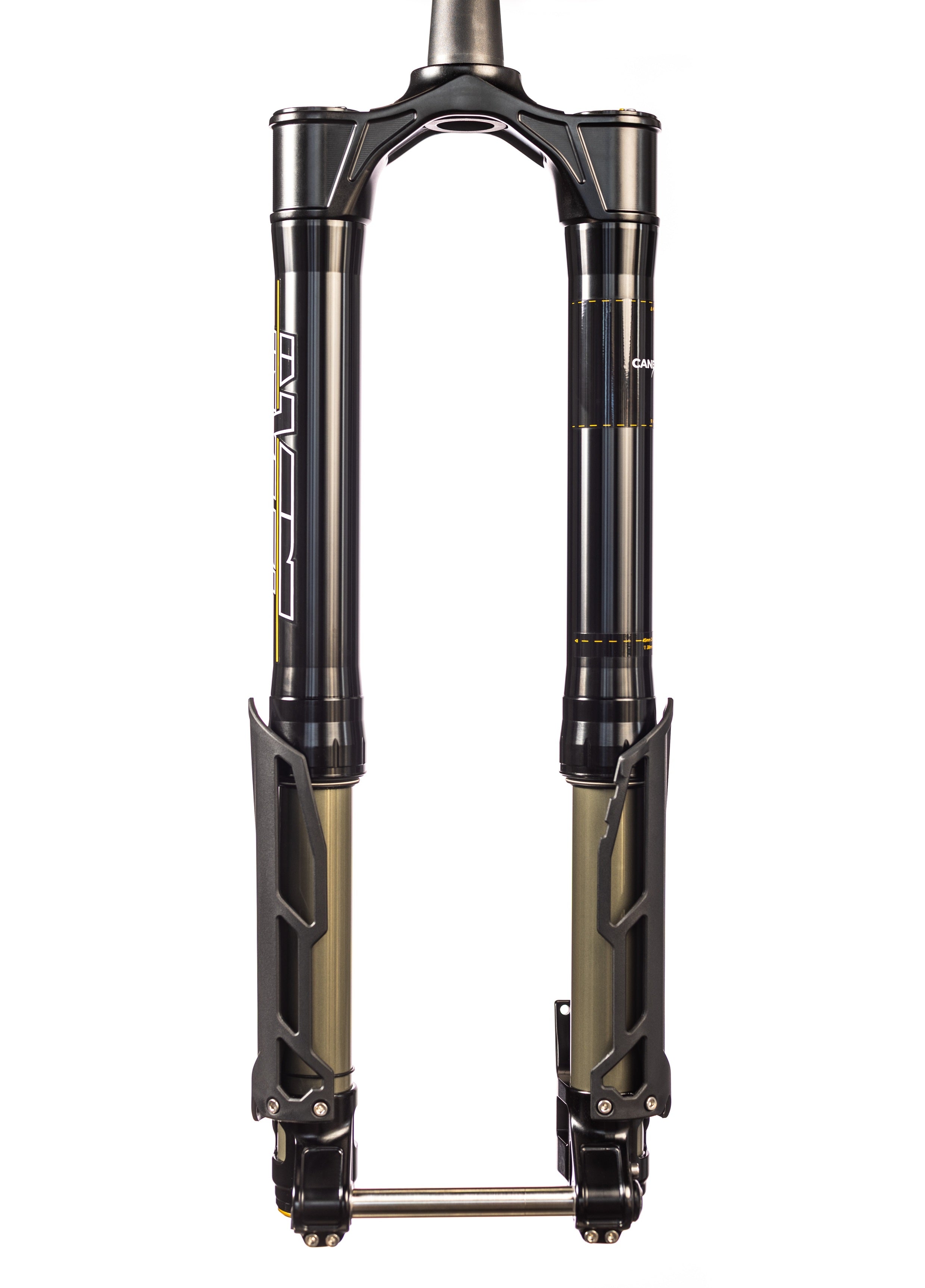

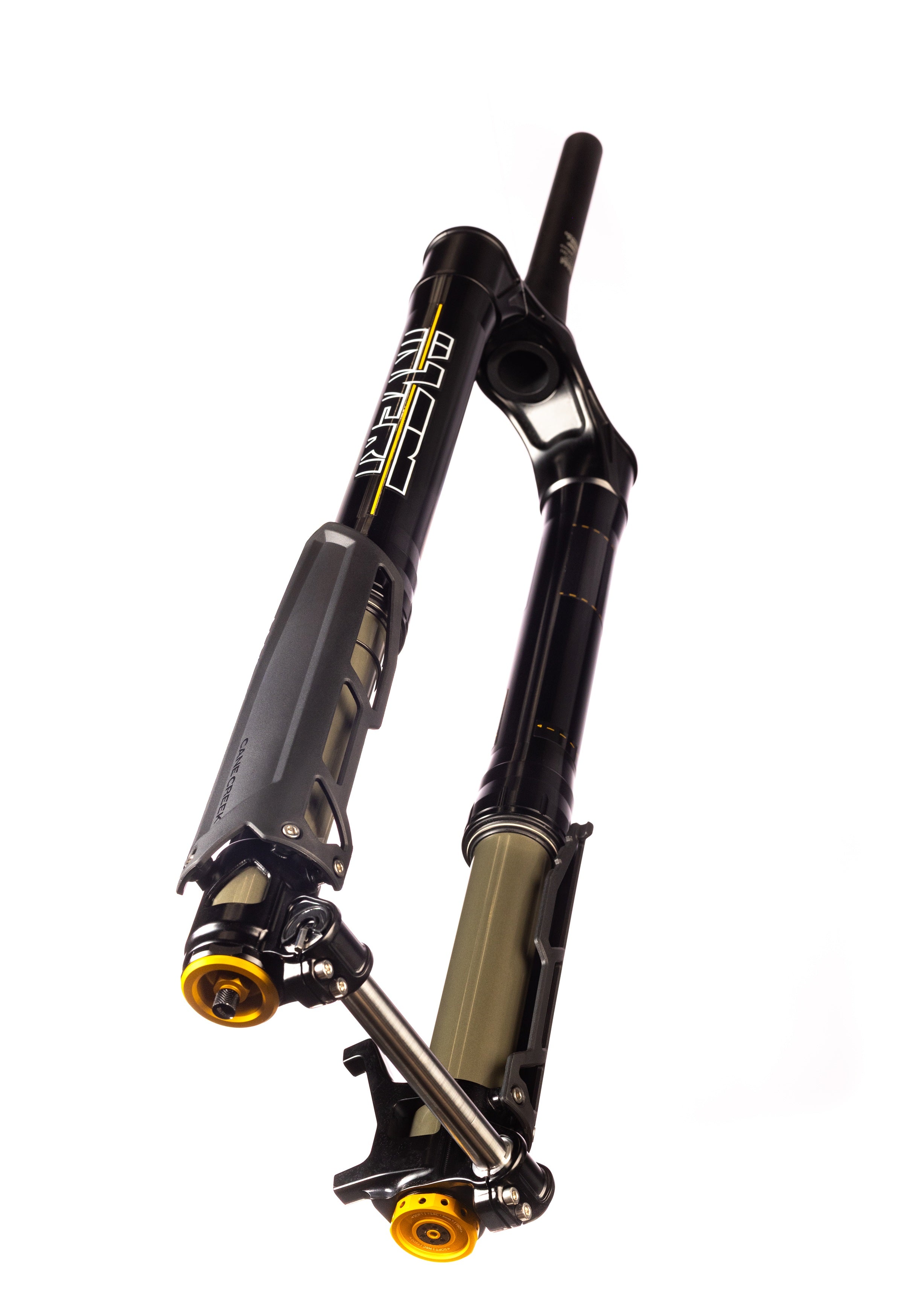

Cane Creek Invert Enduro unlocks dirt bike confidence on your mountain bike.
It brings the traction and smoothness of moto-style inverted forks to more riders with less cost and hassle. This is the kind of game-changing component that will have you unlocking the trails and features you’ve dreamed of checking off.
Highlights
- 160mm to 180mm travel
- Overbuilt, moto-inspired chassis built to handle the weight, power, and speed of modern e-MTB
- 45mm upper tube, 38mm stanchion
- Dual axle compatibility: 15mm or 20mm
- Thrives in steep, fast, rough, and high-speed terrain
- Built for long travel trail, enduro, bike park, and electric mountain bikes
Specifications
- Wheel Size: 29" only
- Travel: 160mm, 170mm, 180mm
- Weight: 2795g

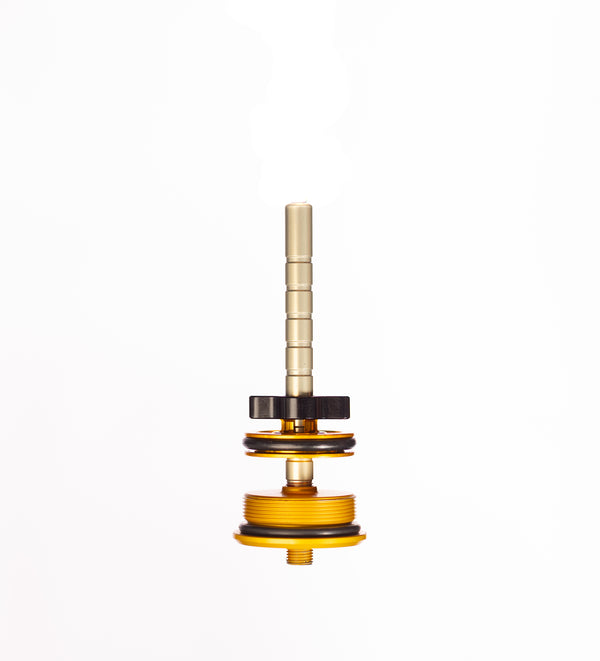

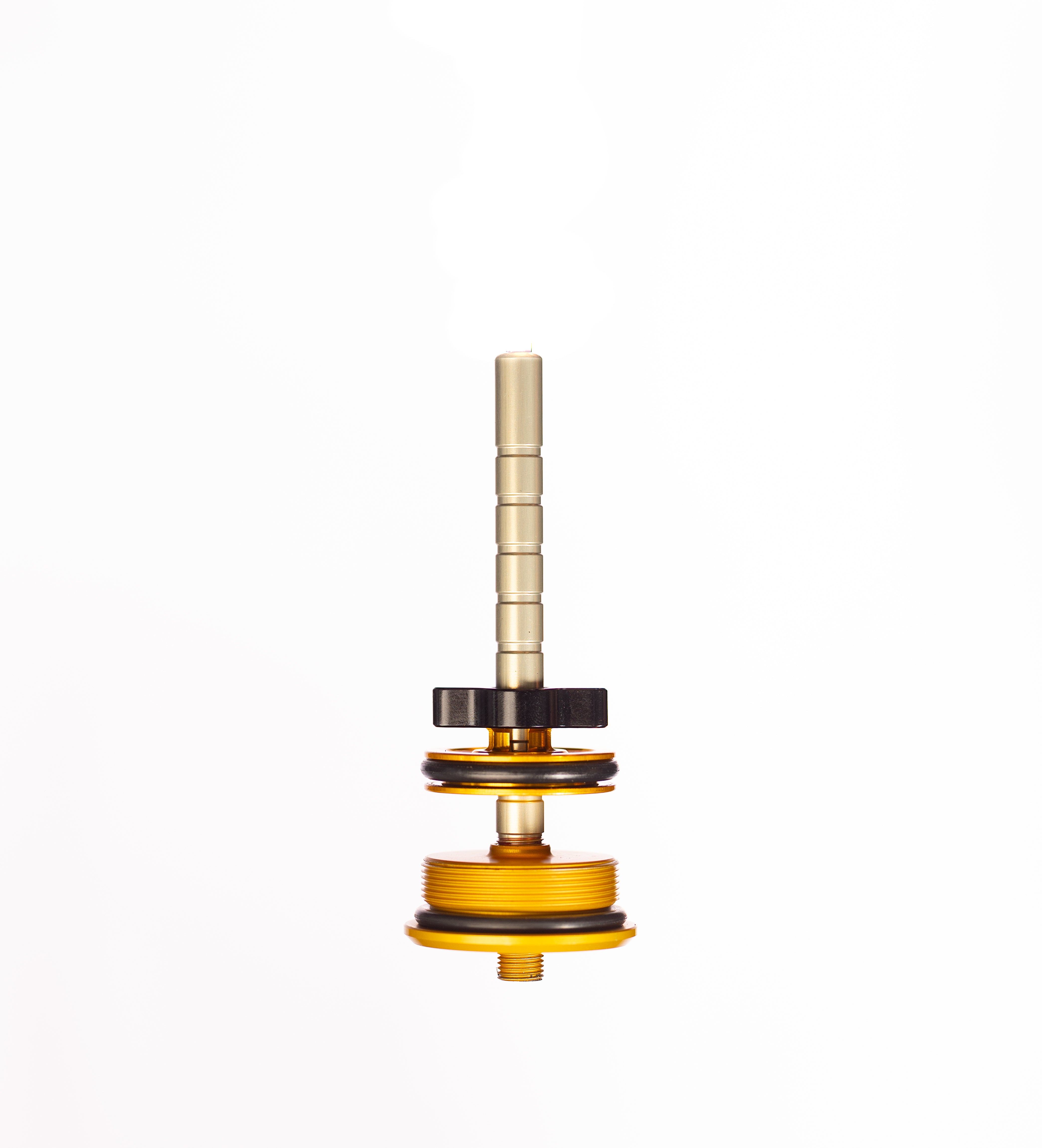

- Spring: Air only with onboard volume adjust system
-
Dimensions:

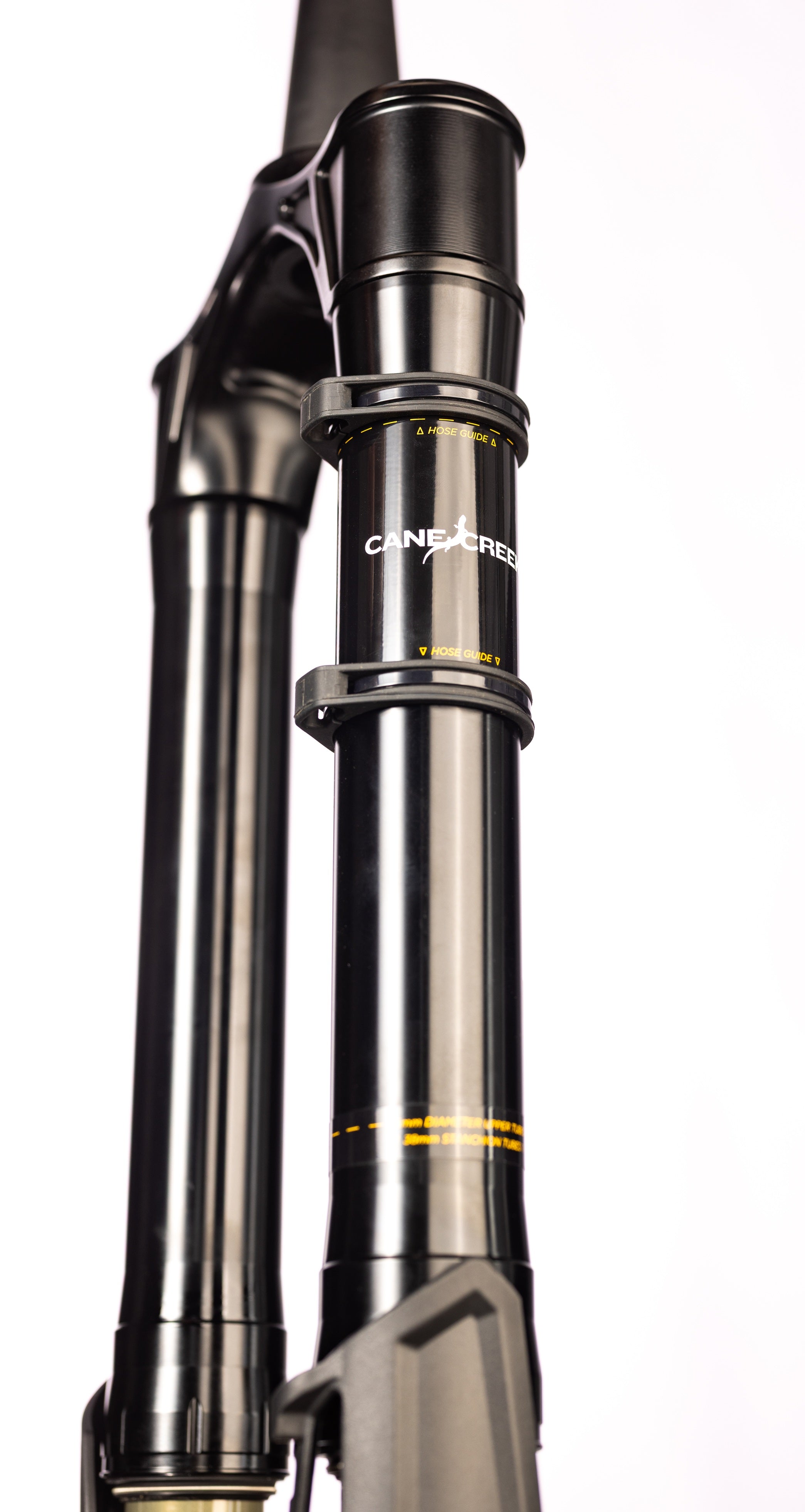

- Upper tube diameter: 45mm
- Stanchion diameter: 38mm
- ATC/Offset: 586.5mm (170 travel) / 44mm
- Hub Spacing: 15mm or 20mm x 110 Boost
- Brake Mount: Direct mount for 200mm rotor
- Steerer Tube: 1 1/8" - 1.5" tapered
- Damper: 2nd Gen Helm MKII, monotube, bladder
- Damper Adjustments: HSC, LSC, LSR
- Bleed Screws: Located in top caps

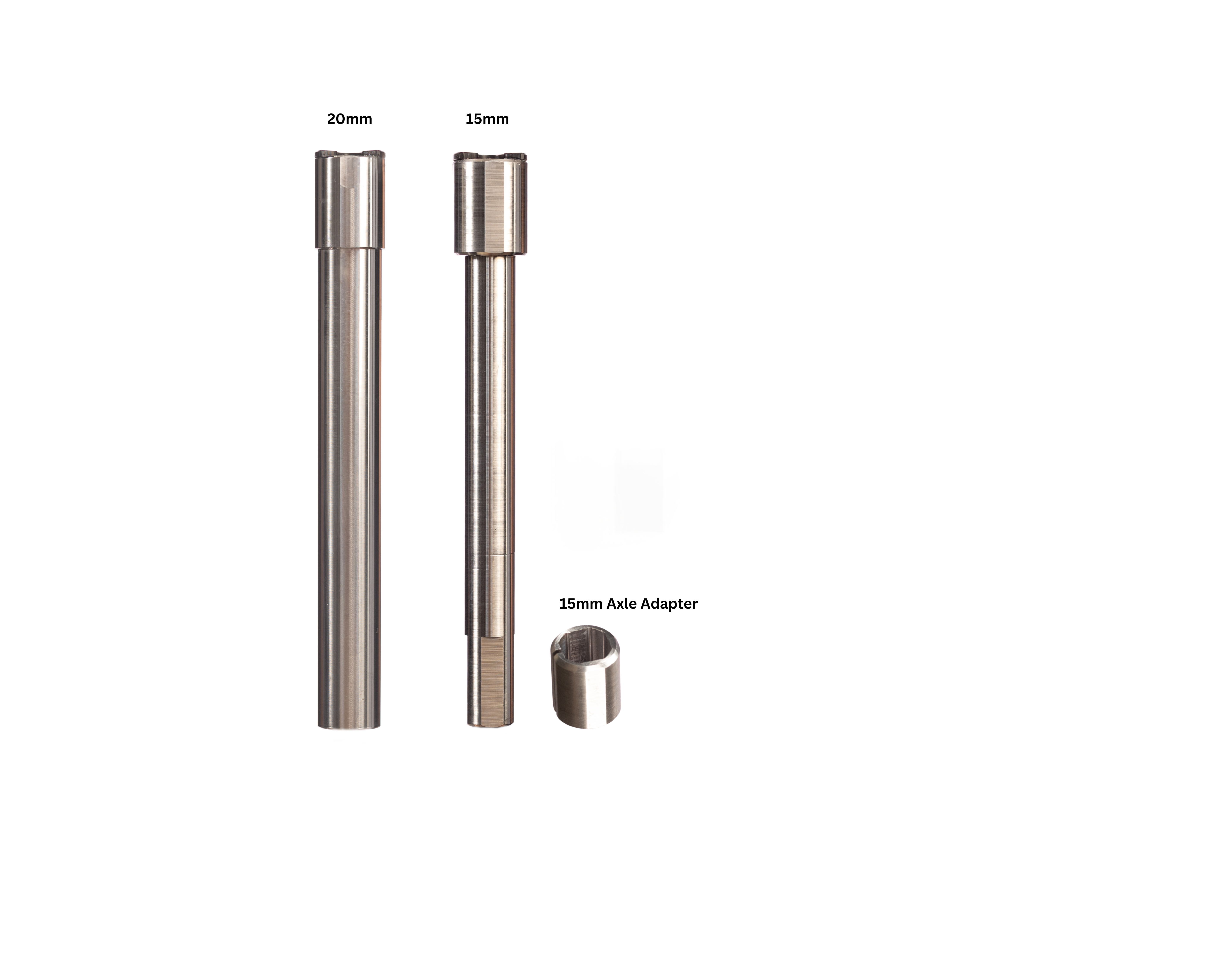

Axle

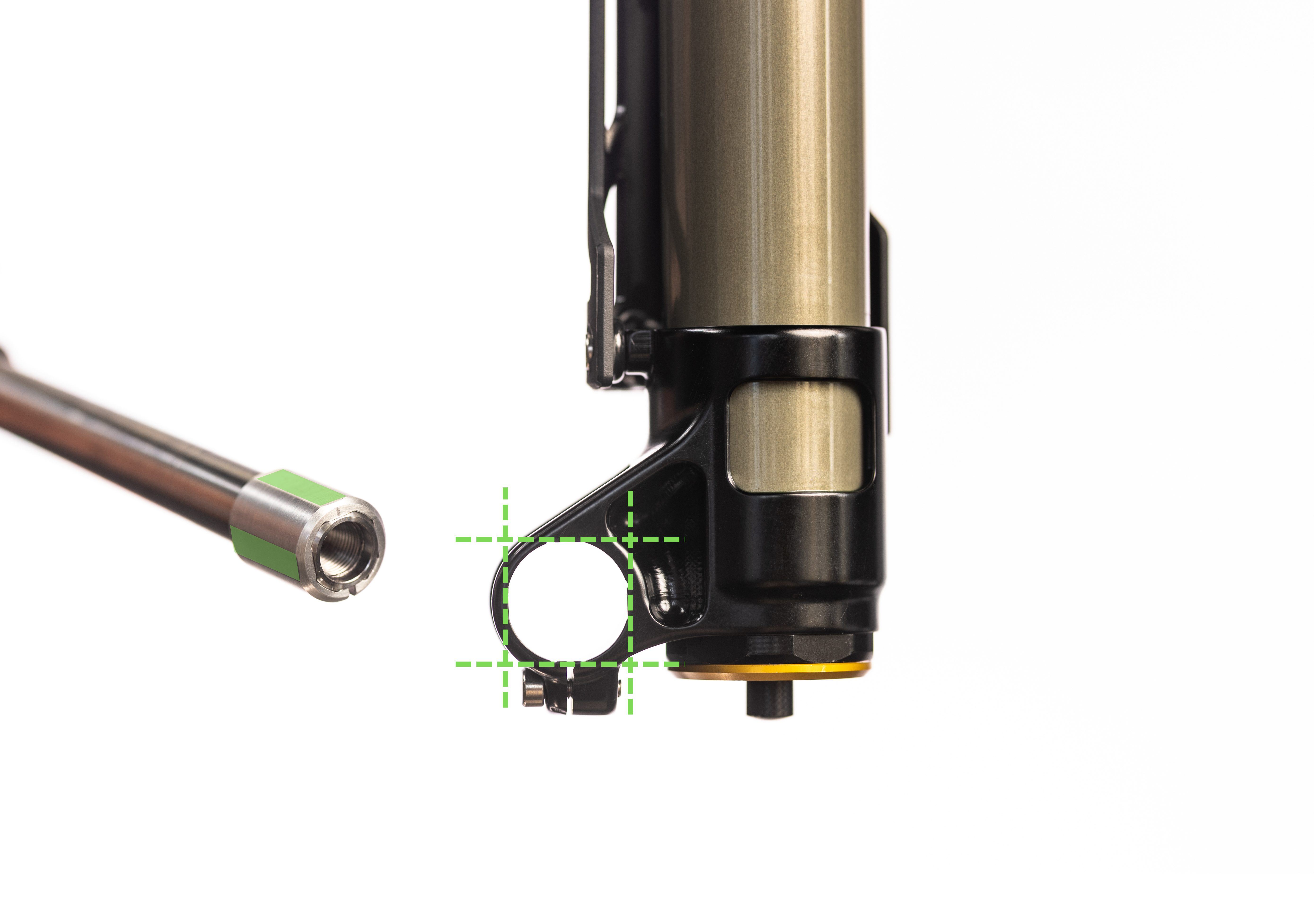

SquareLoc axle keys to dropouts for high torsional stiffness.
17-4 pre-hardened stainless steel.
15mm included. 20mm available separately.

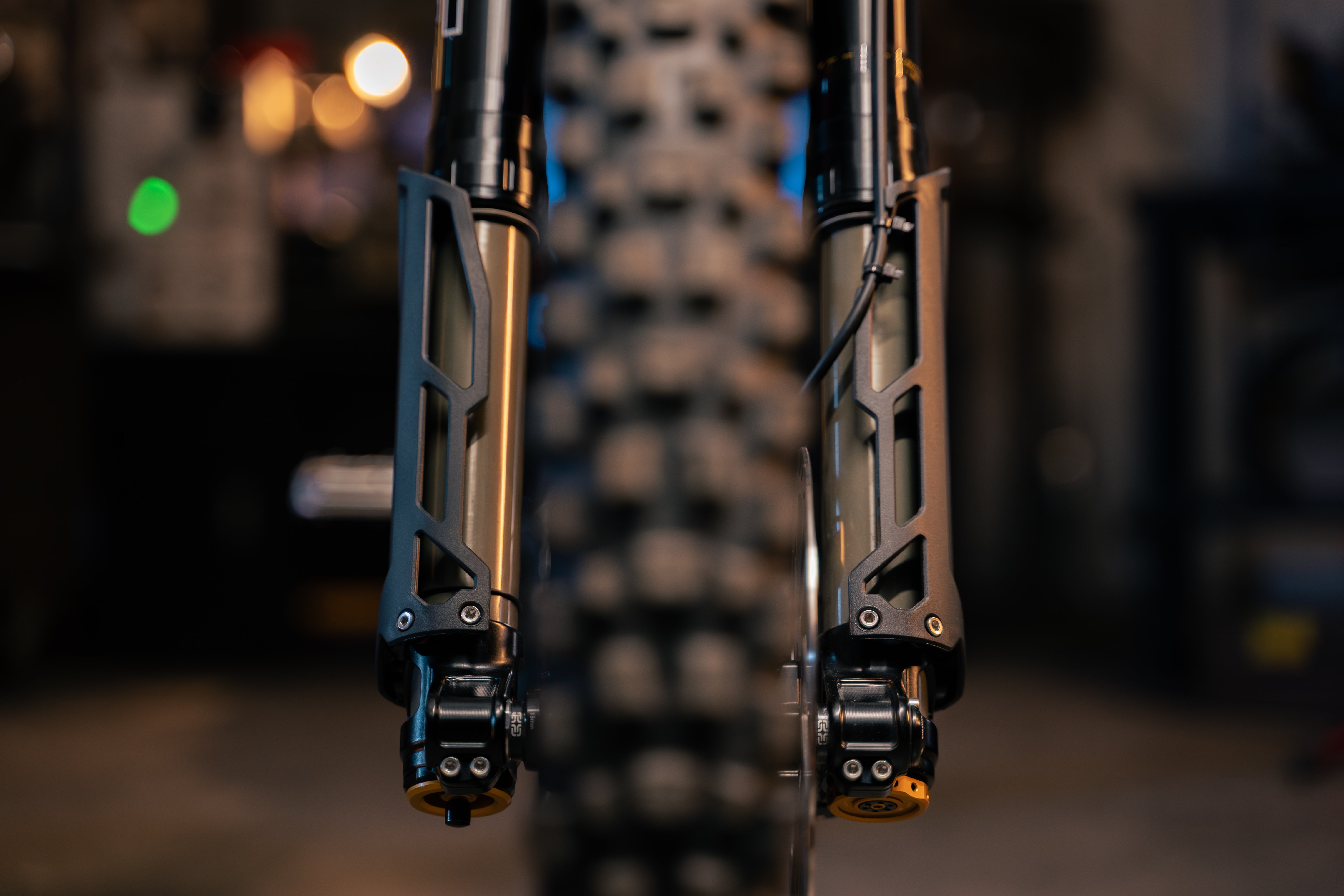

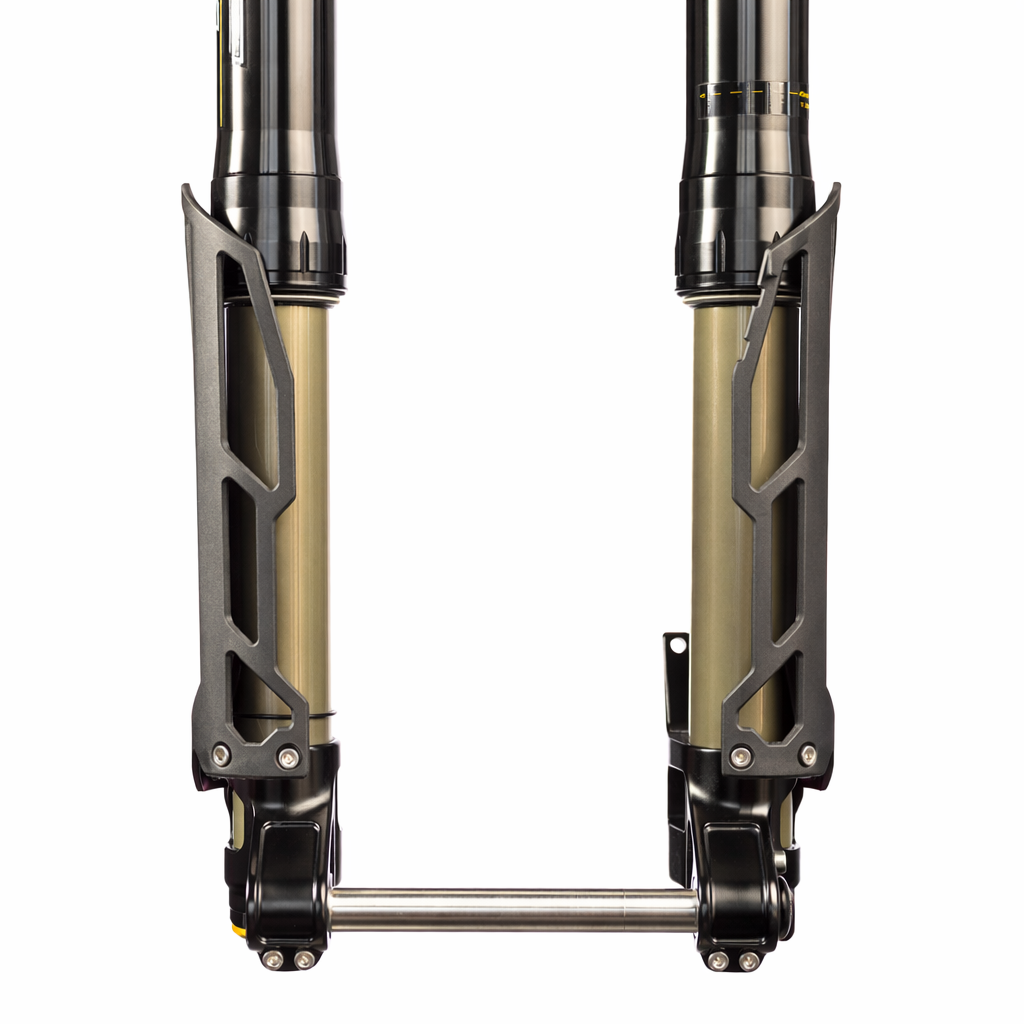

Guards
SideSwipe guards included, required for use.
