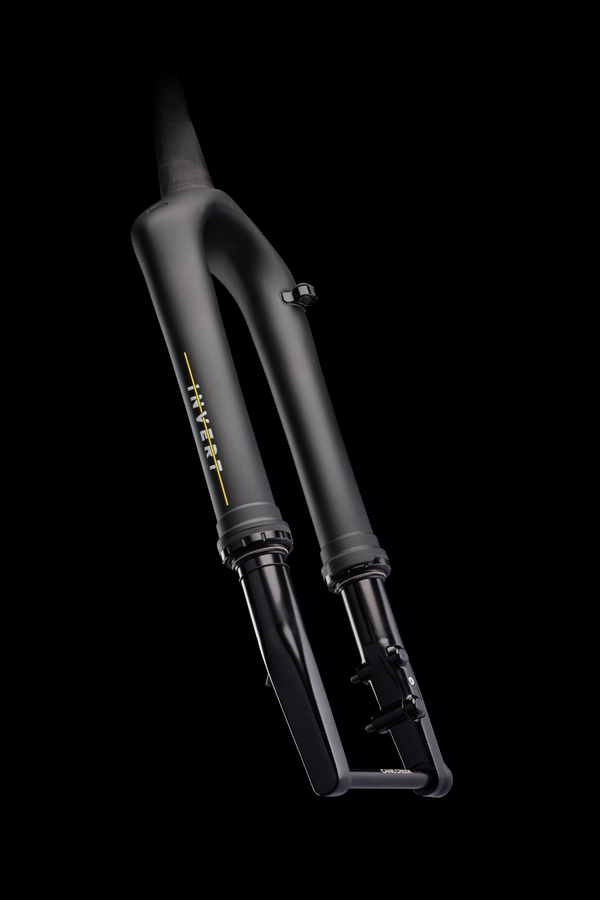

Cane Creek Invert Gravel Fork

BBG0005-CC30
Sale price $1,749.99

Shipping calculated at checkout

Travel
NOTIFY ME WHEN BACK IN STOCK

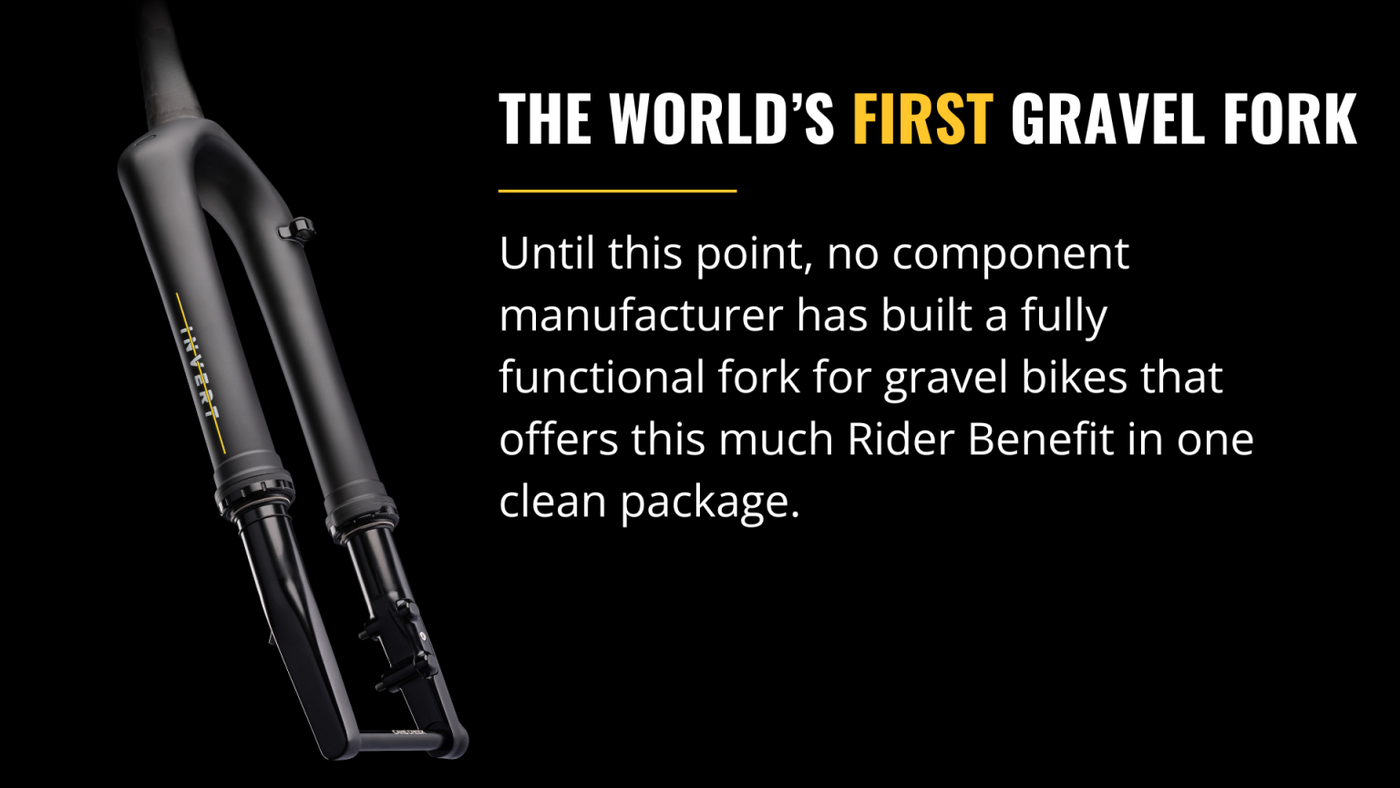

Invert is the World’s First Gravel Fork.

Invert smoothes your ride and gives unbelievable control of your bike on rough roads, loose turns, and steep descents. It's surprisingly lightweight, easy to use, and strikingly attractive. Until this point, no fork made for drop bars has been able to combine the smooth ride, lightweight, simplicity, and good looks into one complete package.

Riding beyond the pavement can be rough, physically taxing, and unpredictable. Invert goes straight to the source of this problem to offer a smoother ride with more traction, both uphill and down. With Invert, you’ll be more efficient, more relaxed, and have confidence to glide over gravel like you’ve never experienced before.


INVERT CS & INVERT SL

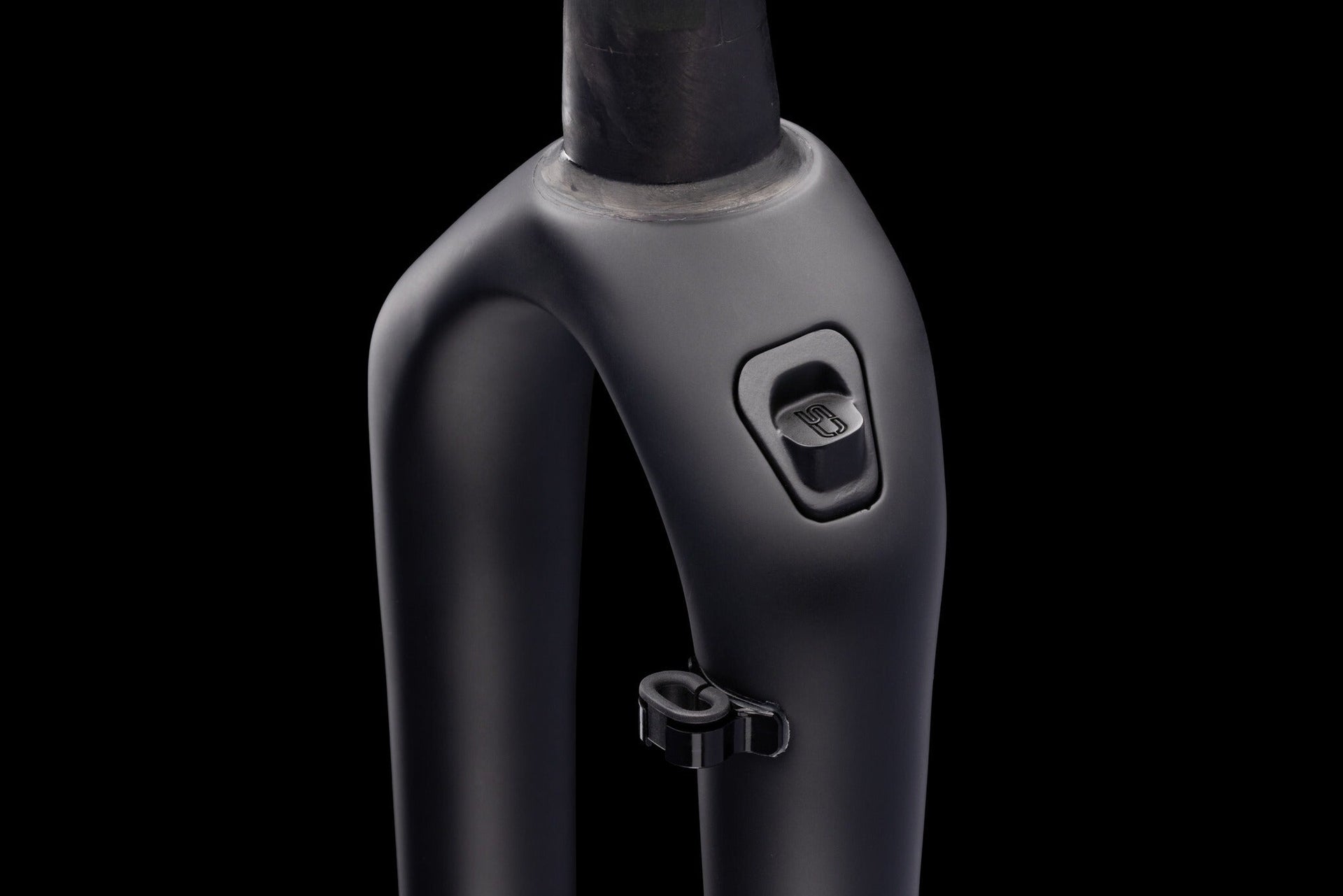

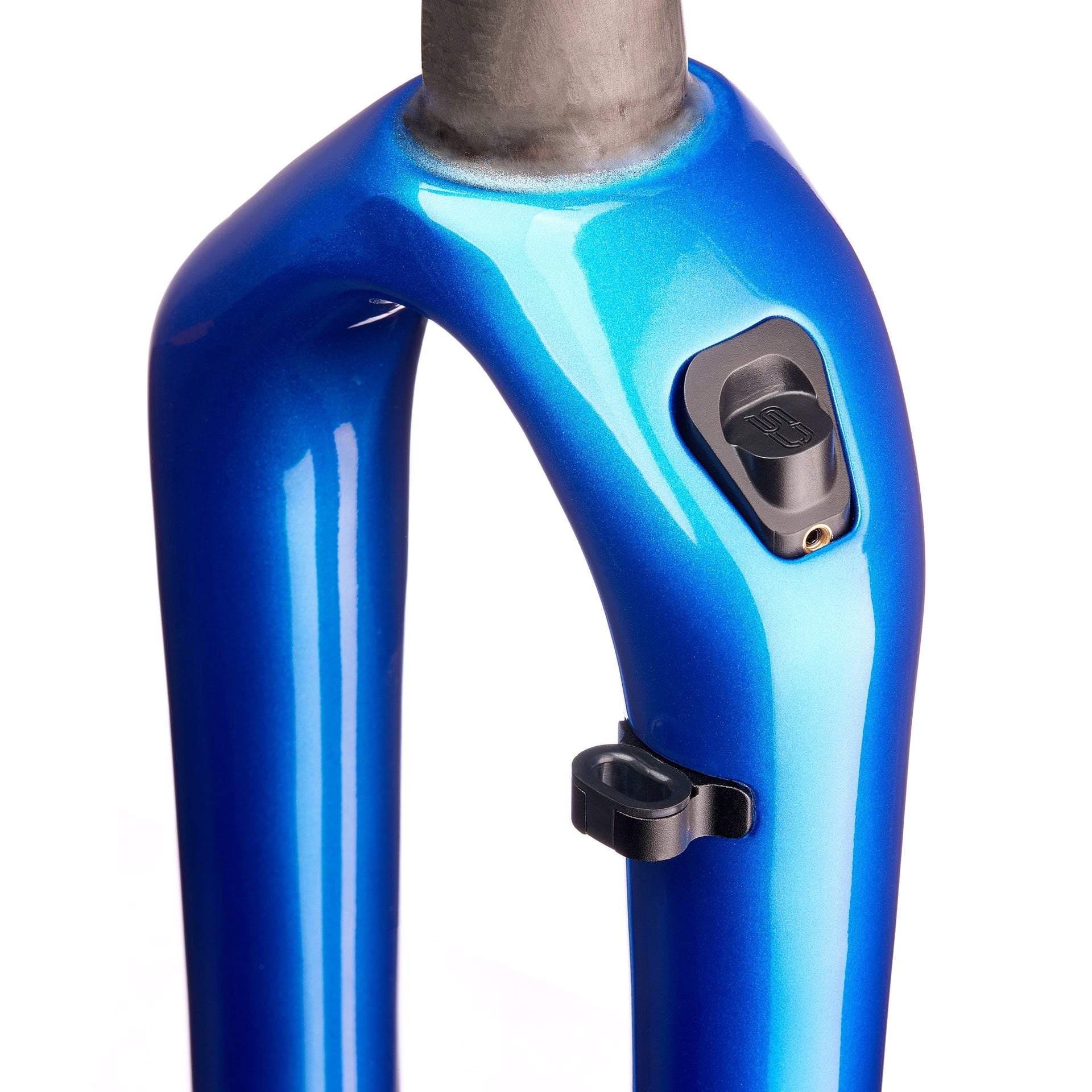

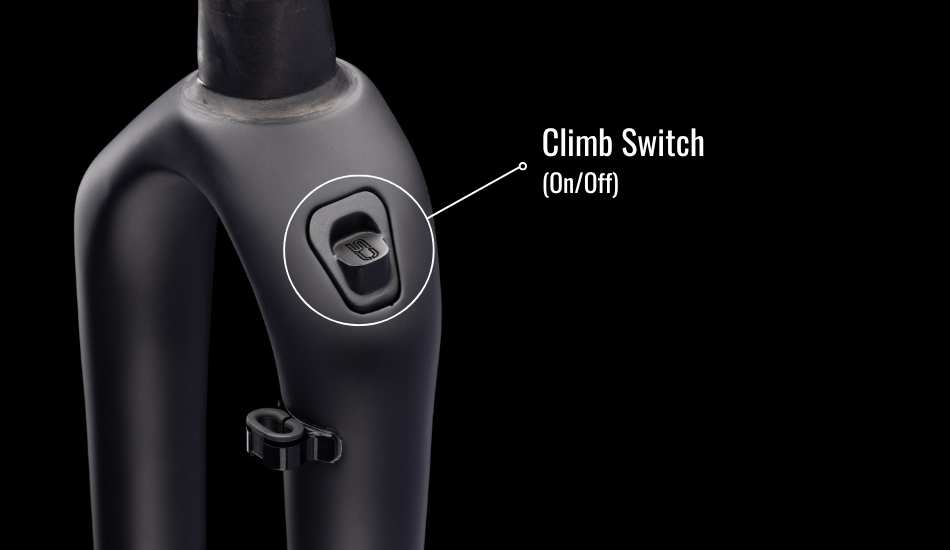

Invert CS comes with 40mm of fork travel and a Climb Switch button that when clicked, dramatically reduces the amount of fork movement for pedaling out of the saddle. The Climb Switch button is inspired by the simple click of a pen, and is as satisfying to click as the feature is to use.

Invert SL is a more minimal and lightweight option. It forgoes the Climb Switch mechanism to reduce weight even further and comes with less travel — 30mm. This shorter option may also be preferable to some riders that want to keep their stance on the front of the bike lower.



LIGHTWEIGHT

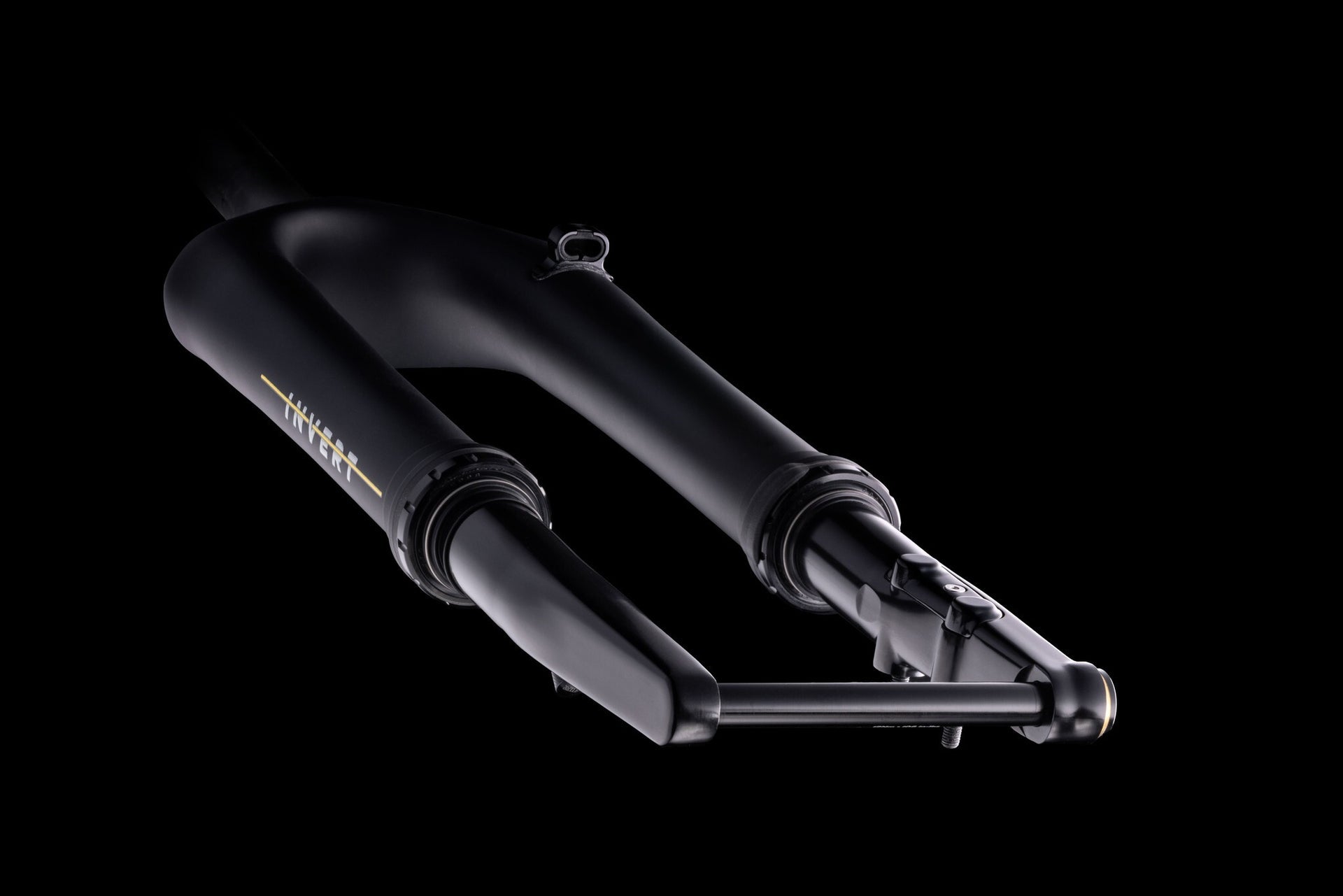

Invert is upside down relative to the layout of traditional suspension forks. This unconventional design offered us the chance to build the lightest gravel fork possible. The main body of the fork is made with a novel, hybrid carbon and aluminum structure that is noticeably lighter and far better looking than the alternative. Invert SL tips the scales at less than one kilogram. That’s about 2 pounds.



Rider Benefit Focused: Invert gives your bike unbelievable amounts of confidence and control & makes Gravel more enjoyable.
Good Looks: Striking, sleek looks integrate perfectly with the simple lines of drop bar bikes.
Easy to Use: Intuitive, single click Climb Switch is easy to operate while riding - even with gloves. No other complex tuning necessary.
Materials: Carbon fiber and premium aluminum construction.
Single-Step Set Up: Just set air pressure using shock pump and RIDE. Adjust to desired level.

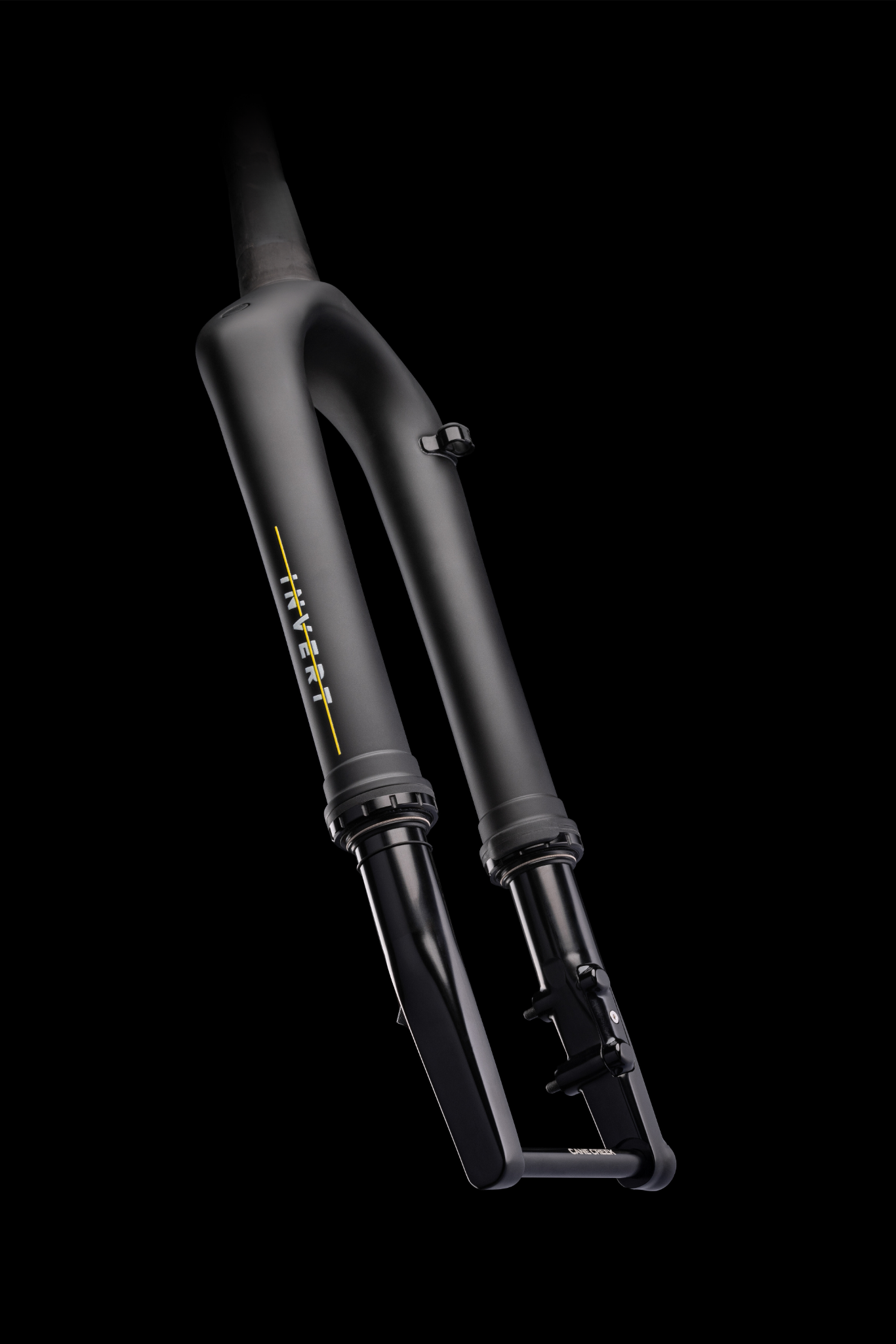

Inverted Design: Promotes smoothest possible operation, lightest weight, & cleanest visual integration by using a layout opposite to conventional suspension forks.
Gravel-Specific: Tuned, progressive air spring balances traction with the right amount of support and is fully adjustable for rider weight.
Hand-Built: In Fletcher, NC USA



More SPECS

Weight : 990g (SL) / 1113g (CS)
Travel: 30mm (SL) / 40mm (CS)

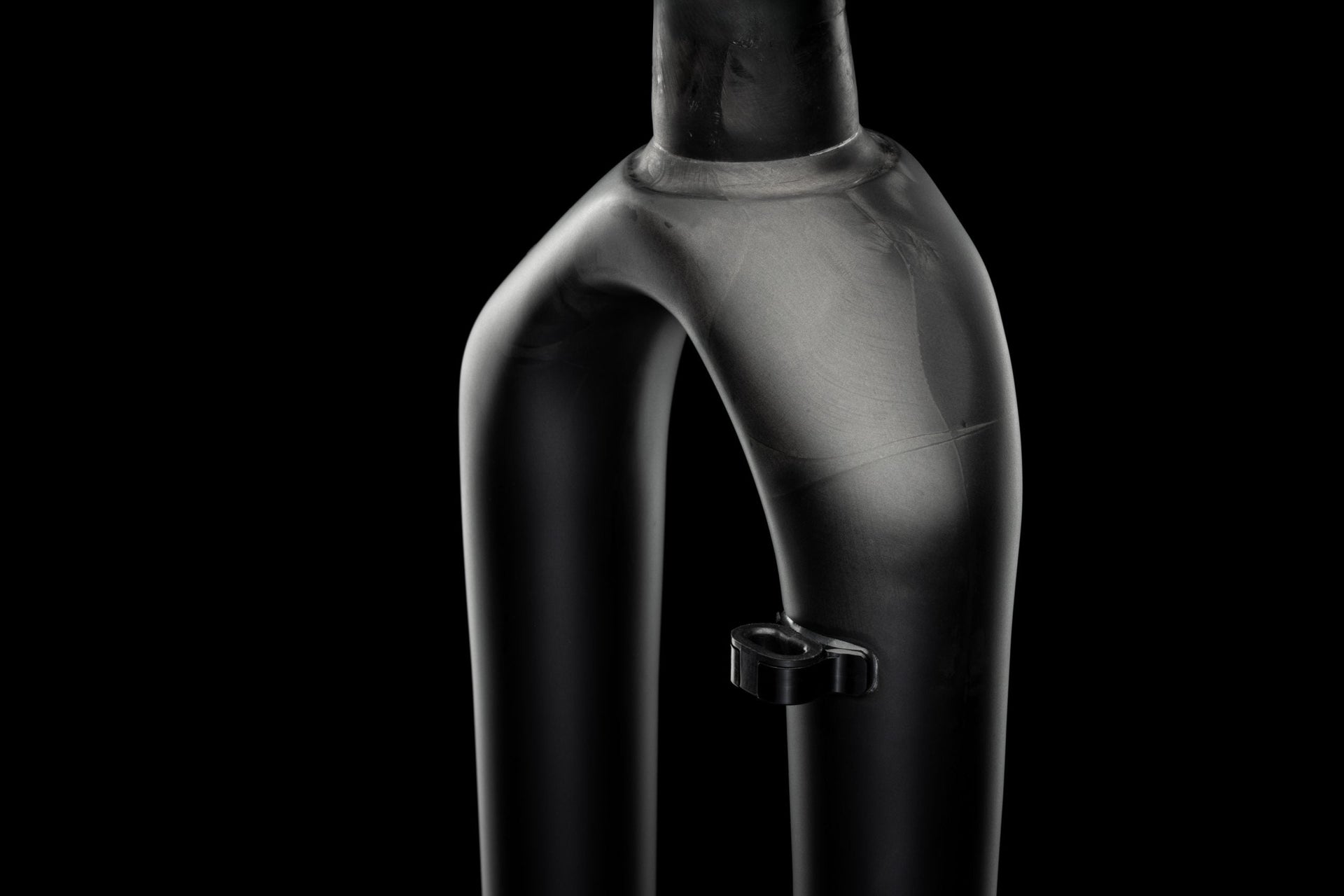

Chassis: Carbon fiber crown & steerer bonded to aluminum upper tubes

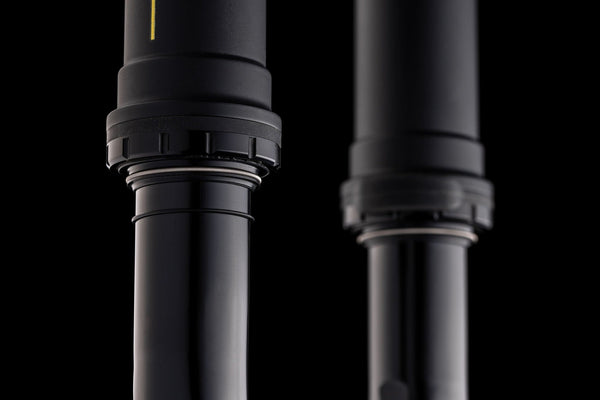

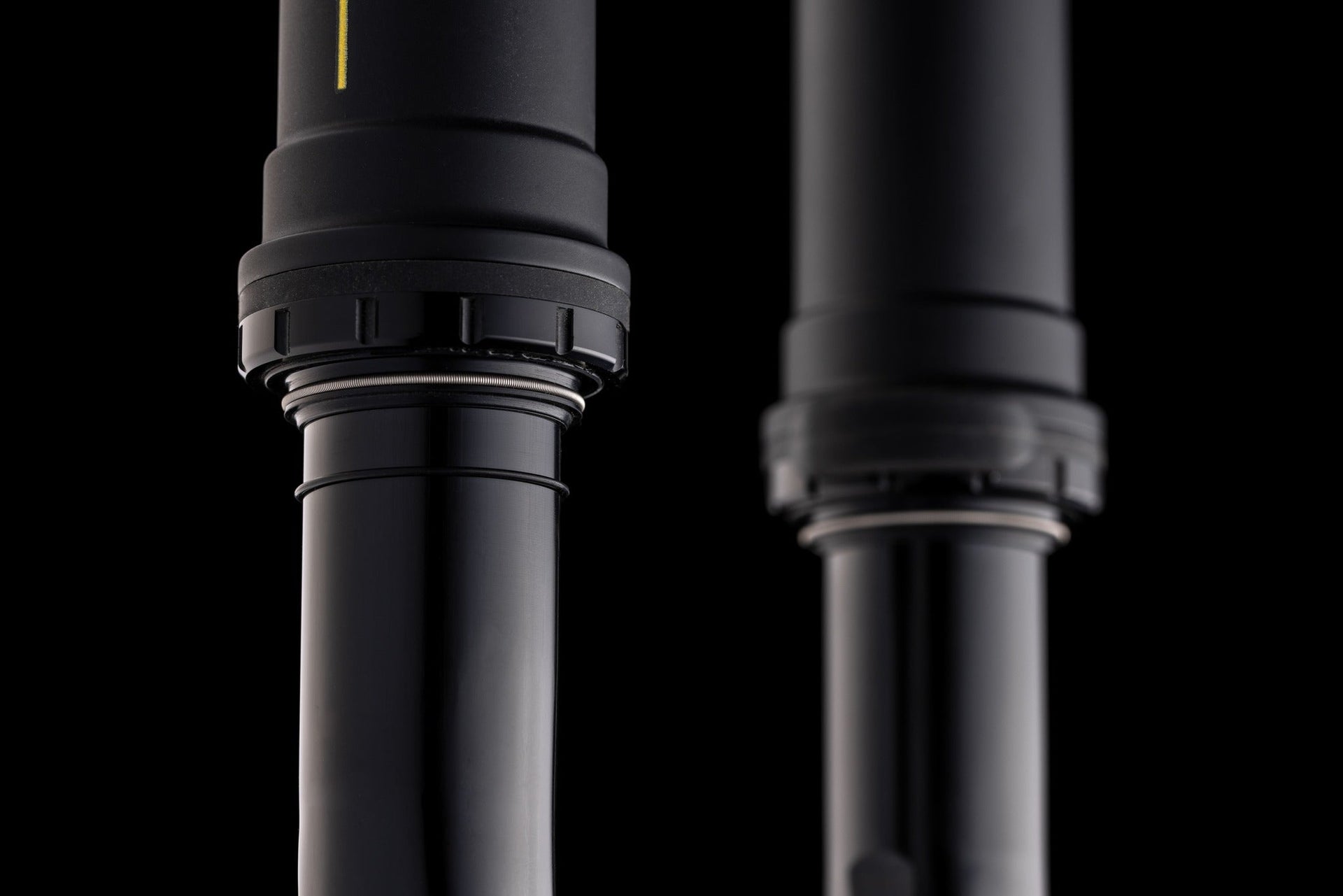

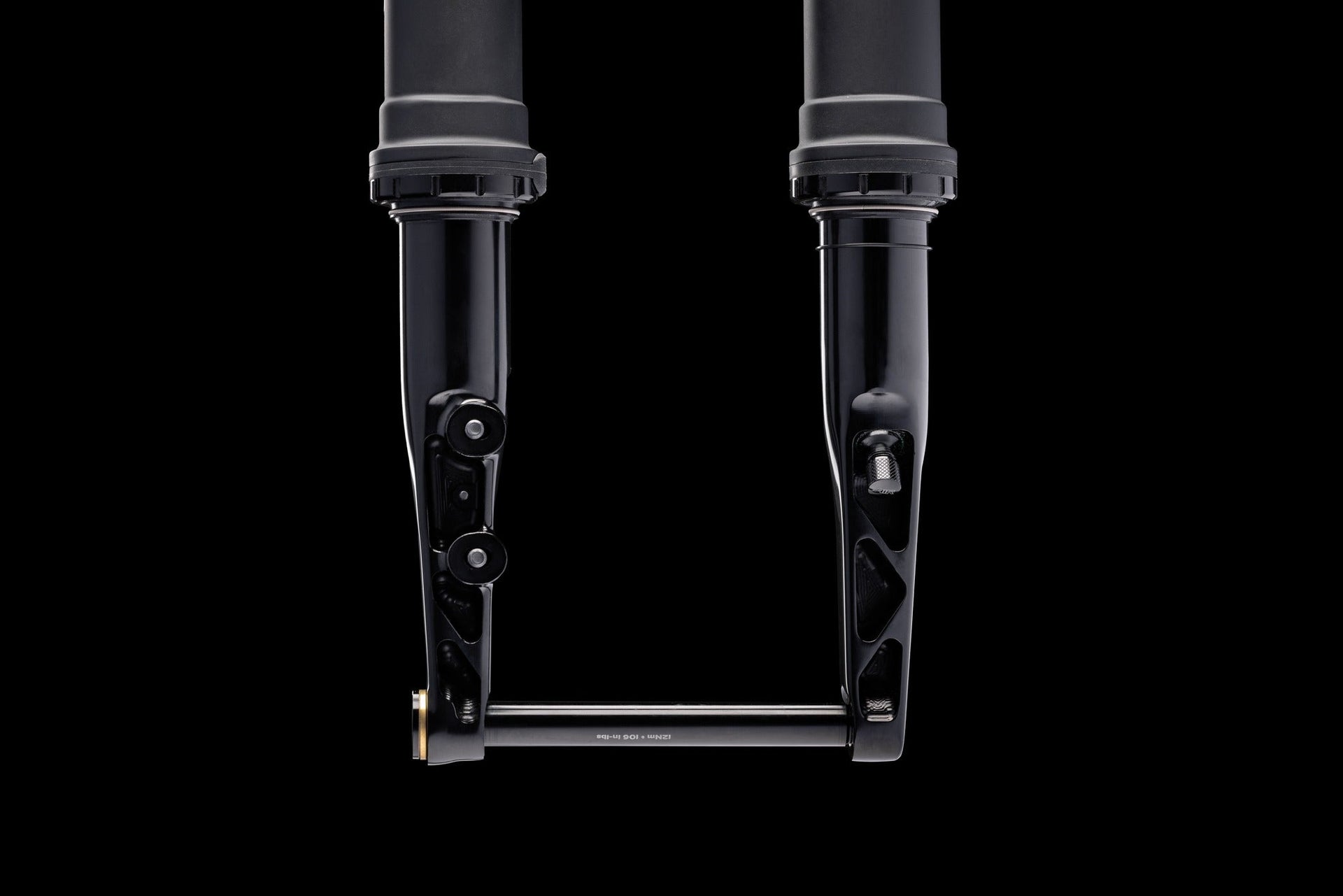

Lowers: One piece, forged and machined 30mm stanchions with integrated hidden brake caliper bolts and hidden thru axle
Max Tire Size: 700c x 50mm
Brake: Flat mount disc for 160mm rotor (hardware included)180mm rotor compatible with any REAR +20mm flat mount adapter
Hub Spacing: 12mm x 100 Thru Axle (axle included)
ATC / OFFSET: SL – 425mm / 45mm, CS- 435mm / 45mm

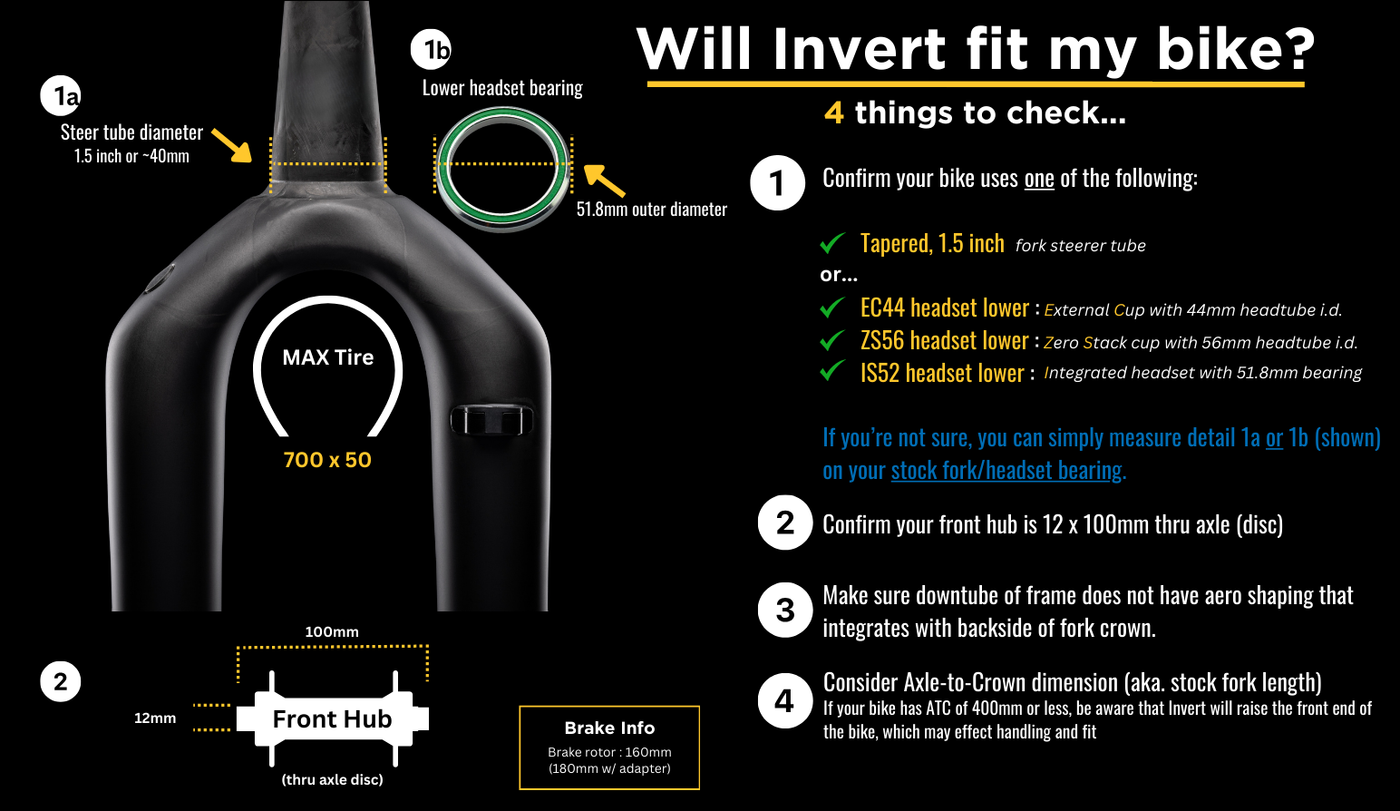

Steerer Tube: 1 1/8” to 1.5” Tapered (28.6mm to 40mm)
Crown Race: Integrated, 36 degree angle
Adjustments: Air Spring adjusts for rider weight, Climb Switch on Invert CS engages firm mode out of saddle pedaling. Single-click activation dramatically reduces fork movement.
Warranty: 2 Years
Recommended Service Interval:
  • 50 Hours: Splash oil flush – no special tools, no major disassembly
  • 100 Hours: Full service
Rider Weight Limit/Max PSI: 250 lbs / 250 psi
Part Numbers:
  • Invert CS – 40mm Travel: BBG0005
    Invert SL – 30mm Travel: BBG0004
Included: Ancora Premium Expansion Plug, 52mm ZN40 headset bearing, Brake caliper mounting bolt
