960-01-022

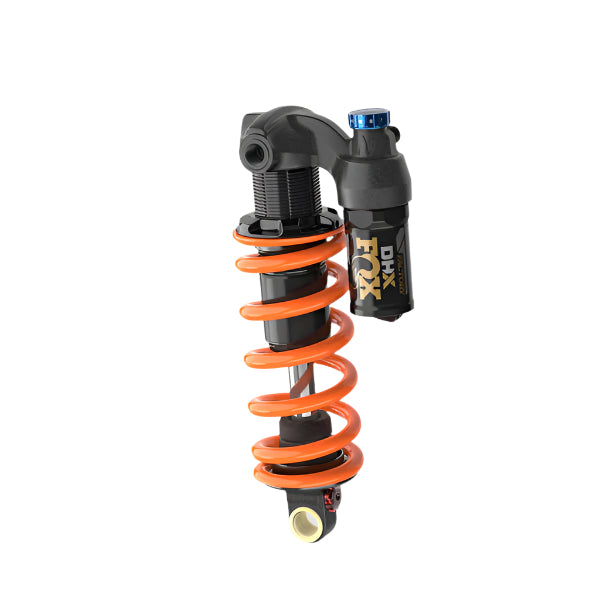

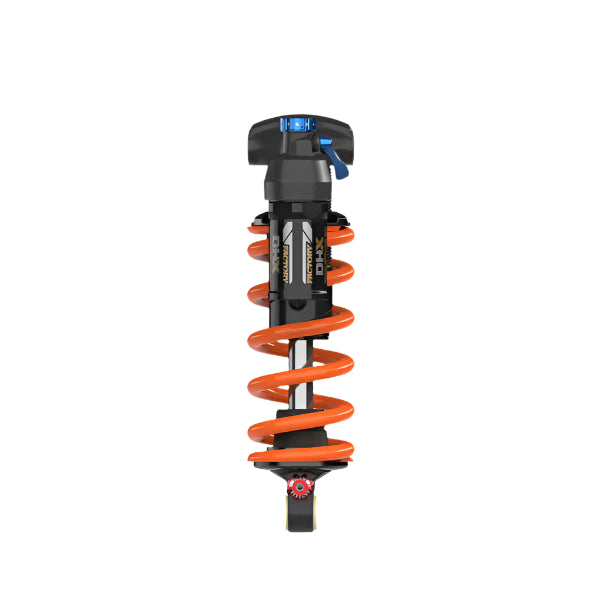

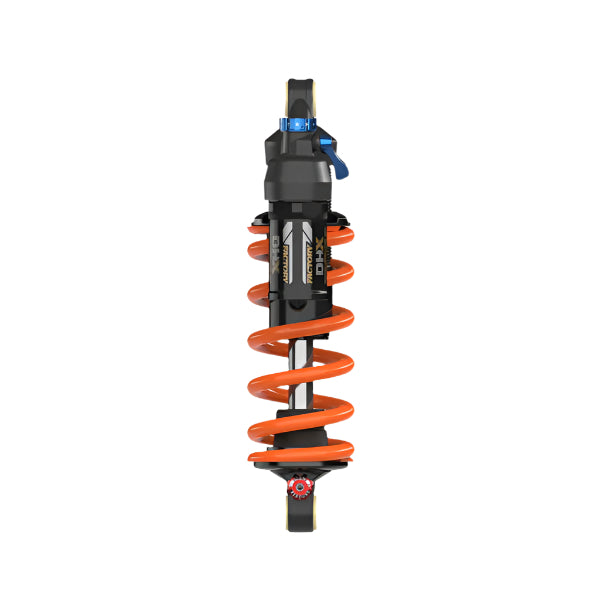

2025 FOX DHX Factory (damper only)

  • Sale
  • Regular price $759.99
Shipping calculated at checkout.


COIL PERFORMANCE FOR THE TRAIL AND BEYOND

Answering the prayers of riders seeking the ultimate in plush suspension, the new DHX brings coil-sprung, magic-carpet, trail smoothing performance in a wide range of configurations to the trails and beyond.

“Factory” says it all – feature-packed and designed to exceed the demands of our Factory-level riders. What we sell is what they race.



**Spring sold separately (choice of Black steel or SLS orange)



SIZES
Metric 210 x 50 / 210 x 52.5 / 210 x 55 / 230 x 57.5 / 230 x 60 / 230 x 65
Trunnion Metric 185 x 52.5 / 185 x 55 / 205 x 60 / 205 x 62.5
ADJUSTMENTS
Independent 2 Position Open/Firm Lever
Low Speed Rebound – 16 Clicks
Low Speed Compression – 11 Clicks
Coil spring preload - (new detents on spring collar)
ALL FACTORY DHX2 SHOCKS
Shaft Coating Chromoly - Ultra-low friction, highly durable damper shaft finish
VVC Rebound Yes
Detents on spring collar Yes
SPECS & FAMILY FEATURES
ALL-NEW chassis and damper
High-flow main piston
Numbered Tool-free 12 position single-turn LSC (Low Speed Compression) adjuster
Independent firm mode circuit – 2 position adjuster
Optimized reservoir lengths per shock size
Hydraulic top out feature
Reduced damper noise
MCU bottom out bumper
Single-turn rebound adjuster with a variety of access modes (Tool-free, 3mm hex (direct access), 2mm hex or similar (side access)
Spring preload collar with detents and max / min number of clicks and direction arrow
Full diameter spring retainer with wire ring (like DHX2)
Spring scuff guard on body (like DHX2)
