THE MASTER OF ALL-MOUNTAIN
From aggressive trail to enduro, the advanced damping, fade free performance and class-leading durability of FLOAT X makes it the versatile and lightweight choice for All-Mountain riders earning their descents.
ALL TERRAIN ADAPTABILITY

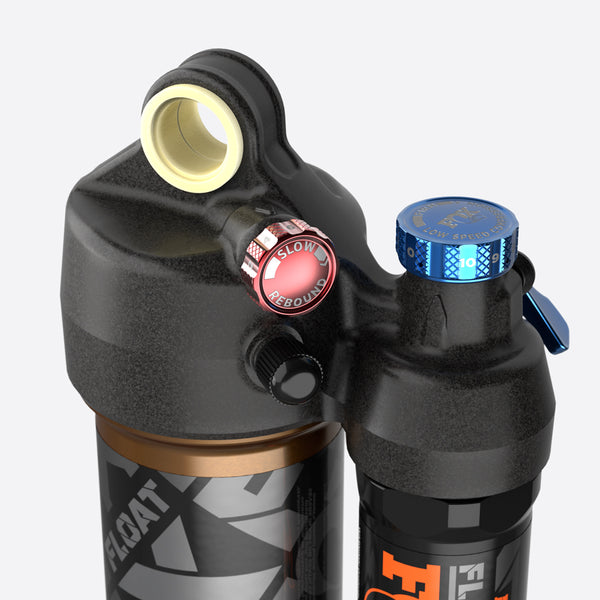

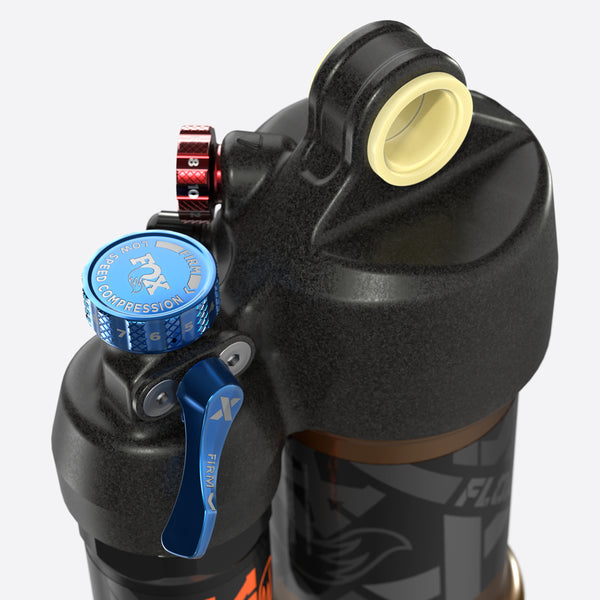

Tool-free adjustment for compression and rebound means the FLOAT X can be quickly and easily set up or tuned for the current trail and riding conditions. The numbered 11-click low-speed compression dial and 2-position (Open or Firm) lever switch run on independent circuits, giving all-mountain riders the descent tuneability they need with the convenience of a single switch for climbing.
WELL-ROUNDED WEIGHT AND PERFORMANCE

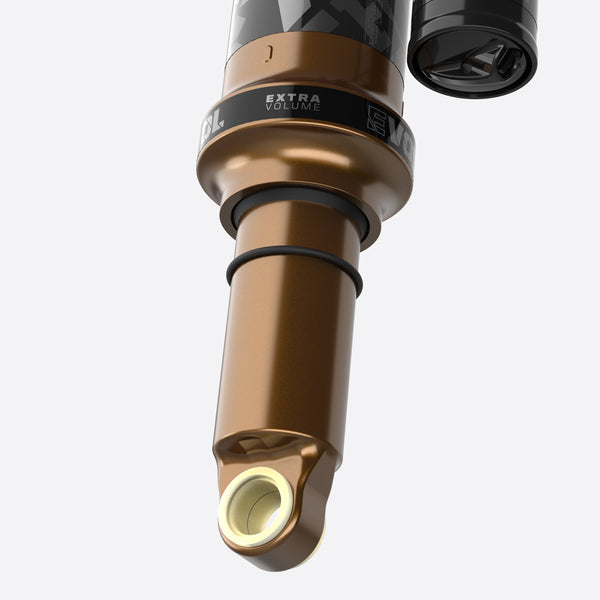

Each size of the FLOAT X is paired with a specific length of piggyback reservoir, giving the shock just the right amount of volume for maximum performance-to-weight ratio. Paired with the large EVOL air chamber, ride feel remains consistent over long descents. A hard-hitting shock geared for the gamut of aggressive trail and all-mountain riding while fitting a wide range of frame designs and geometries.
“Factory” says it all – feature-packed and designed to exceed the demands of our Factory-level riders. What we sell is what they race.
| SIZES | |
|---|---|
| Standard Metric Sizes | |
| Trunnion Metric Sizes |
|---|
| ADJUSTMENTS |
|---|
| Independent 2 Position Open/Firm Lever |
| Low Speed Rebound – 16 Clicks |
| Low Speed Compression – 11 Clicks |
| ALL FACTORY FLOAT X SHOCKS | |
|---|---|
| Body finish | Kashima Coat |
| Air sleeve finish | Kashima Coat |
| SPECS & FAMILY FEATURES |
|---|
| High-flow piston architecture for smooth compression and wide range of tuneability |
| Reservoir with secondary compression circuit for enhanced bump sensitivity, tire grip, and descending performance |
| Base Valve for lower IFP pressures without cavitation |
| Volume spacers in precise increments for ultra-fine air spring tuning |
| MCU bottom-out bumper for smooth end-stroke progressivity |
| Numbered tool-free 12-position single-turn LSC (Low Speed Compression) adjuster |
| Independent firm mode circuit via on-the-fly flickable 2-position adjuster |
| Wide range of rebound adjustment to suit all preferences and terrains |
| Optimized reservoir lengths per shock size for reduced weight and improved fitment |
| Hydraulic top-out feature to eliminate harshness at full extension |
| Optimized air volumes for lower operating pressures and winder range of tuning |
| Convenient air valve location for frame fitment and pump access |
| Bearing hardware compatible both sides |
