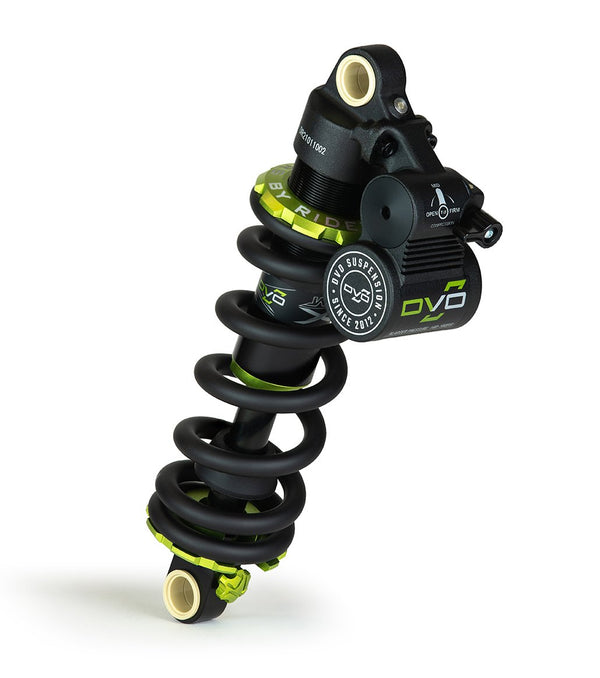

DVO Jade X

Versatility For Every Trail

The ride possibilities and experiences are endless- the new X series will provide the means to explore them. Our most versatile platform yet features an all new T3 compression adjustment, a new rebound design, and a modern design aesthetic.

The real concept behind the Jade X was to offer a coil that still retained some of the best attributes of an air shock- pedaling efficiency and “on the fly” quick adjustments.

Since there were less external adjustments, we really had to nail the compression and rebound tune. For this we created a brand new high flow piston to allow for more shims to control precise points of the stroke. The rebound and compression damping get strong where you need it and back off in situations where the wheel needs to move quick. The high/low speed compression and rebound now work dynamically to provide great support, control, and zero packing on high speed chatter. The end result is the most versatile coil shock option on the market. Achieve amazing pedaling efficiency with top DH performance at the flip of a switch.

Spring sold separately : LS Spring or LS Prorate spring

Spec

• Damper
  T3 Compression | Rebound | Bladder Pressure Adjust
• Spring Features
  Coil Spring Preload | Option of our LS Spring (light steel) or regular steel spring
• Standard Sizes
  8.5x2.5
  7.875x2.25
• Metric Sizes
  230x65
  230x62.5
  230x60
  230x57.5
  210x55
  210x52.5
  210x50
• Trunnion Sizes
  205x65
  205x62.5
  205x60
  205x57.5
  185x55
  185x52.5
  185x50
